Physio Therapy Equipments

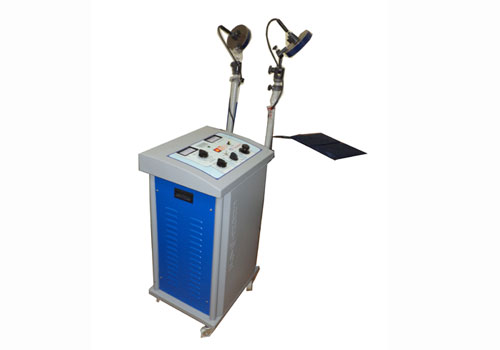

| Short wave diathermy (continuous 500watt & pulse 1000) watt with disk electrode Model no- pcd-101 |
|
|
| |
| Technical specification: |
 |
Cooling fan to cool the chassis and the valve, ensuring prolonged tube life. |
|
Filament voltage can be adjusted in six steps. |
|
The output power is adjustable in five steps. |
|
It has max 99 min digital treatment timer |
|
Max. output power in cont. mode 500 W |
|
Max. output power in pulse mode 400 W |
|
Pulse Frequency 2, 20 & 100 Hz. |
|
|
|
|
| |
|
|
| |

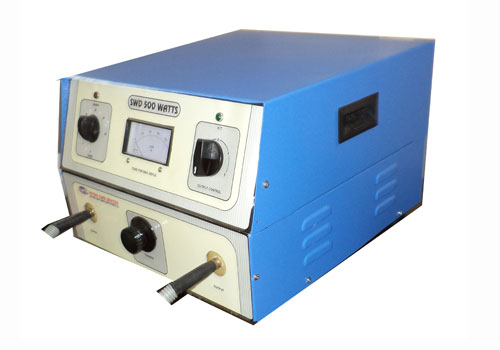

| Short wave diathermy (Table Top) Model no- PCD-103 |
|
|
| Applications: |
|
Cooling fan to cool the chassis and the valve,
ensuring prolonged tube life.. |
|
The output power is adjustable in five steps. |
|
It has max 30 min treatment timer |
|
Max. output power in cont. mode 500 W |
|
Attachment |
|
One tummy pad |
|
Two thigh pad |
|
Two arm pad |
| Technical Specificaiton: |
| Model |
Dyno Pulse |
| Input Supply |
220V Ac/50 hz |
| Power Output |
500W RF |
| Operating Frequency |
27.12 MHz |
| Wave Length |
11.06 meter |
| RF Power Source |
Triode Valve |
| Power Fuse |
7 Amp |
| Weight |
60 kg. approx. |
|
|
| |

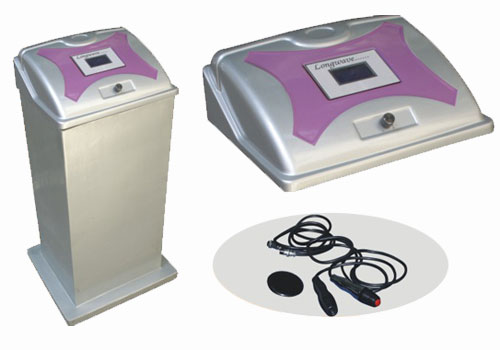

| Long wave diathermy ultra Model no- PCD-105 |
|
 |
| Standard Accessories : |
|
|
|
Lotion bottle 1No. |
|
Operating Manual 1No. |
|
Ground rod |
|
Out put probe |
|
|
| Technical Specificaiton: |
| Wave lenth |
300 meter |
| Frequency |
1 mhz |
| Display |
back light display |
| Timer |
1 to 5 minuts |
| Power |
variable in 16 digital steps/td> |
| Mains |
230 v ,50 Hz |
|
|
| |

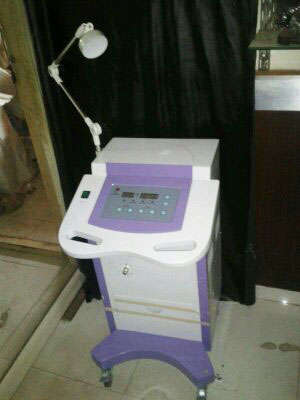

| Micro wave diathermy standard Model no- PCD-106 |
|
 |
| |
Microwave Diathermy Available Models: 2500 CP: Continuous and pulsed 2500 C: Continuous • Power upto (250W-1600 W). • LCD TFT 6 inch graphic display. •64KB smartcard for making patient defined programmes (upto 50). • Built-in 50 treatment protocols. •Pulse function allows prolonged session without discomfort. •Types of antenna available : Circular, • Rectangular (Optional), Three Dimensional (Optional) |
|
|
| Where useful? |
|
Pain |
|
Bacterial infection |
|
Septic fingers |
|
Boils |
|
Abscess. |
|
| |
|
|
| |

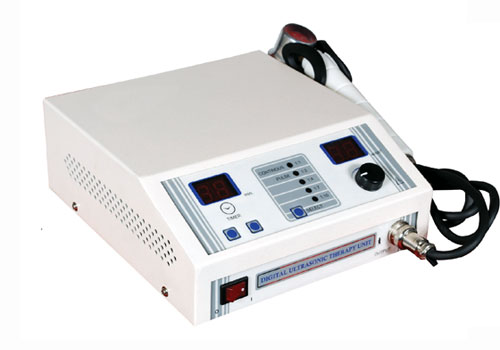

| Digital ultrasonic (1 Mhz) compact Model no- PCD-109 |
|
 |
| Applications |
|
This unit is fully micro processor based, light weighted, compact, easily carrible |
|
Silent Features of this Unit:- |
|
Solid state digital high frequency generation. |
|
Ergonomic applicator |
|
Operating System analogue. |
|
|
| Technical Specification: |
| Input Voltage |
220v Ac/500 Hz |
| Frequency |
1 MHz. |
| Output Mode |
Continuous / Pulse |
| Pulse Ratio |
1:1, 1:4, 1:7, 1:9 |
| Power Output |
3.0w/cm2 maximum |
| Treatment timer |
0-20 timer |
| Weight |
2.5 Kgs approx |
| Power Fuse |
1amp |
| Dimension (L.B.H.) |
8”x9”x3” |
|
|
| |
| Digital ultrasonic (1 Mhz) physioModel no- PCD-110 |
|
 |
| Applications |
|
This unit is fully micro processor based, light weighted, compact, easily carrible |
|
Silent Features of this Unit:- |
|
Solid state digital high frequency generation. |
|
Ergonomic applicator |
|
Operating System analogue |
|
|
| Technical Specification: |
| Input Voltage |
220v Ac/500 Hz |
| Frequency |
1 MHz. |
| Output Mode |
Continuous / Pulse |
| Pulse Ratio |
1:1, 1:4, 1:7, 1:9 |
| Power Output |
3.0w/cm2 maximum |
| Treatment timer |
0-20 timer |
| Weight |
2.5 Kgs approx |
| Power Fuse |
1amp |
| Dimension (L.B.H.) |
8”x9”x3” |
|
|
| |

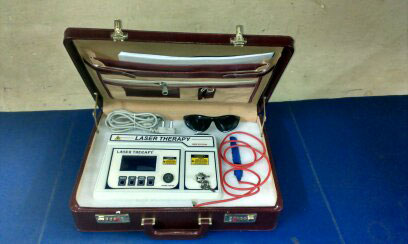

| Physio laser model PCD-185 |
|
 |
| |
The physio laser is an advanced and modern designed unit for laser therapy with interchangeable laser probes. Laser therapy, also known as photobiomodulation, low level laser therapy (LLT), cold laser therapy, and as laser biostimulation is an effective method for Wound Healing Nerve regeneration Pain management Cosmetic regeneration Soft tissue injury treatment Skin treatment (esp. for Acne) Resolving viral and bacterial infections |
|
|
|
| Applications |
|
- International standards and specifications
|
|
Automatic calculation of Joules & Power |
|
Solid state digital high frequency generation. |
|
Choice of two probes pointed & cluster |
|
Large graphic LCD display |
|
Large graphic LCD display |
|
Plastic moulded cabinet |
|
Laser protective goggles |
|
|
| |

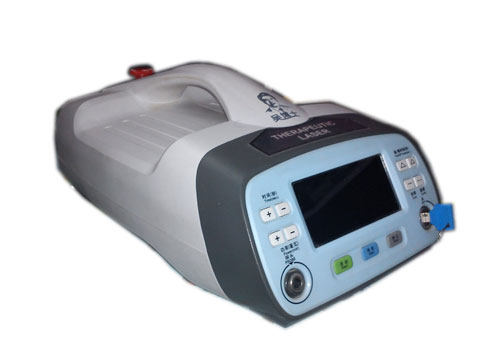

| Sundom laser model no PCD-187 |
|
 |
| |
Do you suffer pain from back, shoulder, ankle, wrist, neck, elbow or knee? All debilitating conditions make life experiences challenging and painful. Now there is a fast, drug free, non-invasive solution to help you get back to enjoying life. The many pleasures of life -Laser Pain-relief Instrument from Raycome Health. |
|
|
| Features |
|
Natural & drug freer |
|
Non-invasive. |
|
Highly effective |
|
Non-side -effects. |
|
|
| |
| Hydrocotter |
|
 |
|
|
|
|
| |
| Wath Ball |
|
|
|
|
|
|
|
