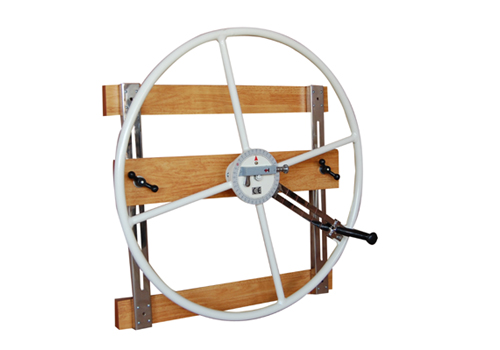

| Shoulder Wheel Large Size
Model no -PCD-146
|
|
|
| |
|
| |
All 16g pipe constructed, 100 cm dia wheel revolve smoothly with C.I drum & is fitted with calibrated sensitive resistance mechanism, the resistance is Control able from zero to maximum. A 360 deg. Scale is provided on the drum to measure and record the degree of revolution from either direction. Arc of motion can be varied from 30cm to 80cm dia.
Wheel is mounted on three laminated hardwood wall boards and two boards are fitted with Two stainless steel channels (80cm H x 6cm W) to give wheel 48cm height adjustment to suit each patient. Oven baked finish. |
|
| |
|
| |
|
|
| |

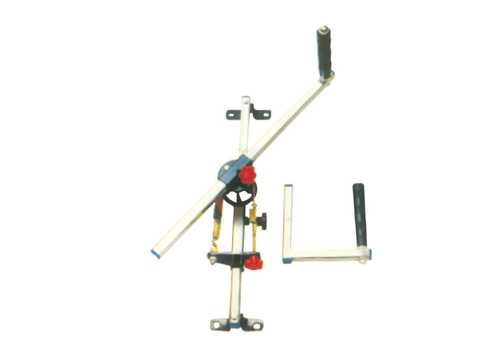

| Shoulder Wheel Compact
Model PCD-147
|
|
|
| |
Compact model shoulder wheel suitable for small clinics for shoulder, arm and pronation/supination exercise. Used in the same way as a conventional shoulder wheel. The resistance can be increased by tightening the strap. Adjustment bars are chrome plated. Fitted with attachment to raise or lower the unit at the desired height for each patient |
| |
|
|
| |
|
| |
|
|
| |

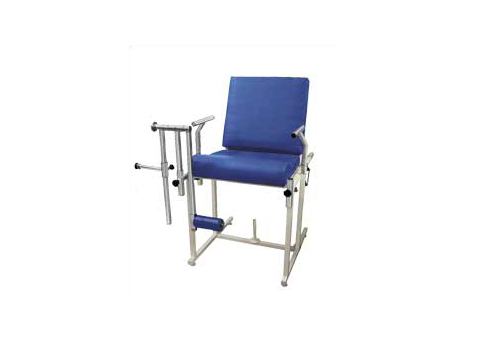

| QUADRICEPS TABLE WITH BACK REST Model PCD-149 |
|
|
| |
|
| |
The Quadriceps Table & Chairs enable exercise in sitting position i.e. instance knee stretching and exercise in reclining position i.e. knee flexion & hip stretching. The system has adjustable backrest that supports a full range of lowers and extremity exercises. The backrest can be adjustable with any angle of flexion (0 to 90 degree), depending on the requirement of the patient / user. |
|
| |
|
|
| |

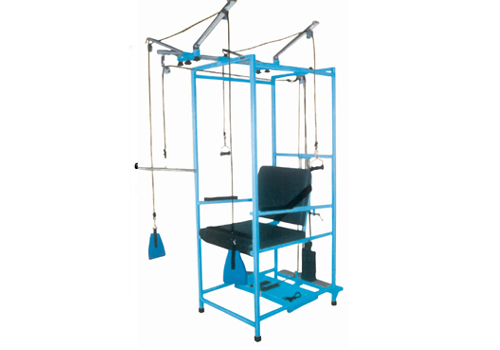

| Multi Exerciser chair Model PCD-150 |
|
|
| |
Speciffically designed chair, which require little space and can be used in small therapy departments where space is limited.
Tubular steel constructed chair of 100 cm long x 67 cm wide is fitted with overhead bar that extends out 80cm from the frame. The chair with two stabilizing straps, three handles two foot straps, ropes with pulleys and overhead pulley system can be used for variety of exercises involving Reciprocal Motion for Elbow, Shoulder, Knees and Hips; Active Quadriceps and Hamstrings Stretching; Resistive and Assistive exercises.
The set of ten locking weights provides graded resistance for all exercises. Spray enamel finish.
|
|
| |
|
| |
|
|
| |

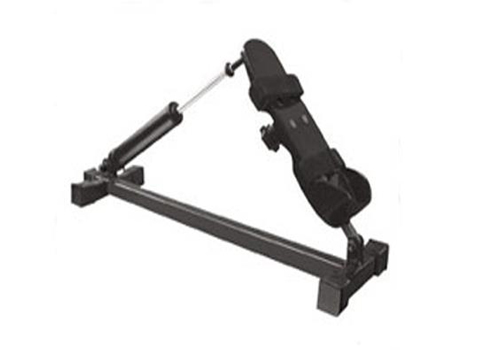

| Heel Exerciser Model PCD-154 |
|
|
| |
Specially designed unit for exercising the heel & tarsus muscle groups.
Ankle Exerciser Heel Exerciser Physiotherapy Equipment - Unit is fitted on a iron solid base and patient can exercise while sitting on chair.
The resistance can be increased or decreased by shifting the foot holder up or down on the lever.
Resistance can be increased further by tightening spring's nut.
Best for all age groups, makes feel better after using.
|
|
| |
|
| |
|
|
| |

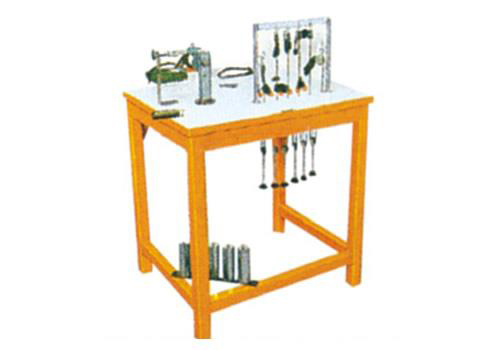

| Hand Exerciser table
Model PCD 157
|
|
|
| |
Hard-wood table with laminated top, size 24" x 30" x 30" high.
Fitted with 6 pulleys in a steel frame. Leather loops and nylon cord passing through the pulleys with hanging weight underneath for Fingers Hand, Wrist and Forearm exercises.
Especially for Metacarpophalangeal & Interphalangeal joints.
Provided with Supinator/Pronator and Wrist-Circum-duction wheel for Wrist exercises.
Comes with Five sets of weights, each set consists of 5 weights of One each of 100, 200, 300, 400 and 500 grms. |
|
| |
|
| |
|
|
| |

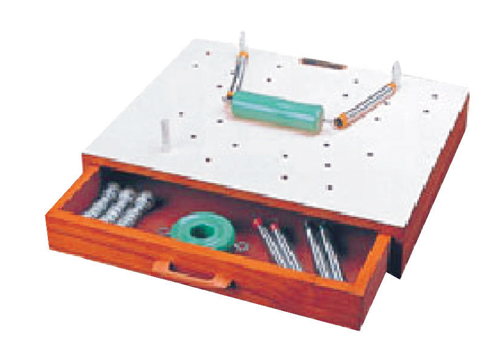

| Hand gym kit board
Model PCD160
|
|
|
Laminated exercise board with storage drawer, has several holes to fix Pegs and Springs. Comes with One finger Disc, One Roller, Three Spring loaded Knobs, 3 Aluminum pegs and 3 Sets of Springs of different tensions. The unit permits active flexion and extension exercises of the finger and grip. |
|
| |

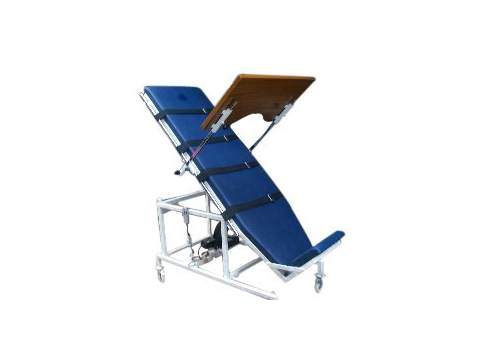

| Tilt table manual
Model PCD 166
|
|
|
| |
- Manual crank tilt mechanism locks in at any angle. Crank handle is removable.
- Fixed table height is 33" high.
- Removable padded footboard.
- Gray vinyl upholstery.
- 2" High-density urethane foam top.
- Tilt angle indicator from 0° to 90°.
- Three extra-wide safety straps.
- Set of (4) 4" locking casters.
- Heavy duty steel frame is powder coated in neutral cream finish.
- 3 ½" clearances under frame.
- Designed for rehab and therapy.
- Not designed for cardiac testing.
- Maximum Patient Weight: 110 Kg.
|
|
| |
|
| |
|
|
| |

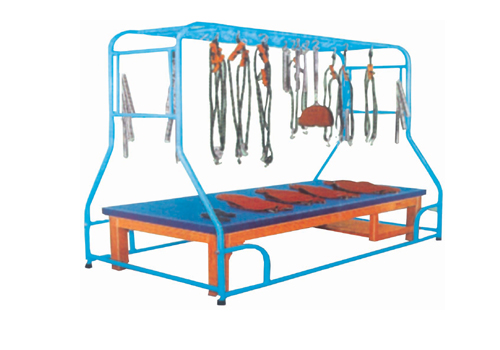

| Suspation Frame with Bed & Accessories
Model PCD-168
|
|
 |
Suspation frame with bed & accessories
Model no -pcd-168
Tubular steel construction, overall sizes 210cm long x 110cm wide at the base, 50cm wide at the top and 190cm high. All welded steel rod mesh at the top for complete suspension with slings & ropes, 12 hooks are provided on each side to hold suspension gear.
Meshes facilitate suspension at any desired point in relation to the patient and as required in each individual case.
Comes complete with Suspension Gear comprising 9 canvas slings (6 limb, 2 trunk & 1 head), 8 single ropes & four double pulley ropes with necessary hooks & cleats, 18 graduated springs of different tension, 12`S'hooks and 2 ankle straps.
|
|
|
| |
|
|
| |

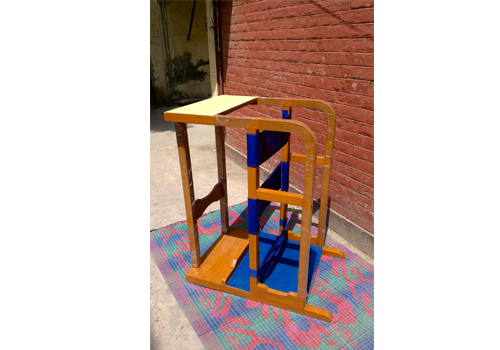

| Stand in frame adult
Model PCD-301
|
|
|
Basic standing frame comfortably supports weight-bearing parts of the body. Helps prevent atrophy of leg muscles, improves range of motion, helps improve circulation, lessens muscle spasms and contractions Frame is made out of best quality teak wood and is fitted with a laminated top tray. Three straps are provided for heel, ankle and pelvic support. Natural wood polish finish. |
|
