Electro Therapy Equipments

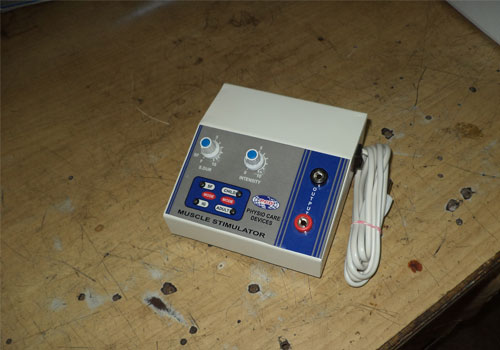

| Muscle Stimulator Portable Model –PCD-112 |
|
|
| |
|
| |
Relieve the pain in shoulders,back,waist and other parts of our body with electronic toning |
|
| |
| Features: |
 |
Soothe anaesthetization and reduce fatigue with unique massage techniques |
|
Beautify the skin and restore the flexibility of skin with<
effective electronic low frequency waves |
|
Exercise the muscles and increase fiber contration |
|
Maximize effect through installation of 3 different kinds of programs to be applied to symptoms |
|
It is very well combined to make it conveniently to be use |
|
Tested in various parameters |
|
| |
|
|
| |

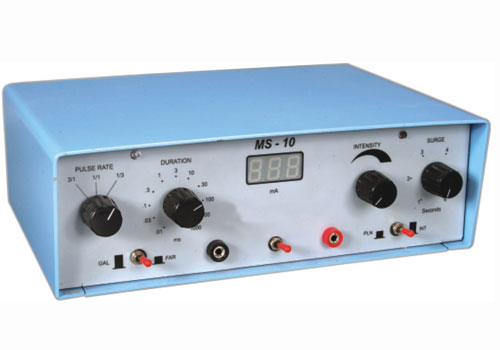

| Muscle Stimulator Dignostic Model-PCD-114 |
|
|
| |
Muscle stimulators PHYSIOSTIM-D are extremely light weight, compact size, portable and easy to carry. |
| |
|
|
| |
| Features: |
| Therapy Mode |
G, IG, F and SF |
| Pulse Duration |
0.01, 0.03, 0.1, 0.3, 1, 3, 10, 30, 100, 300 and 1000 m sec. |
| Pulse Rest time |
1-6 sec |
| Visual Indicator |
G, IG, F and SF |
| Faradic Frequency |
50H2/0.7 m Sec |
| Surge Duration |
1-6 Sec |
| Surge Rest Time |
1-6 Sec |
| Note |
3 digit digital displays meter available for diagnostic muscle stimulator – PHYSIOSTIM-D |
|
| |
|
|
| |

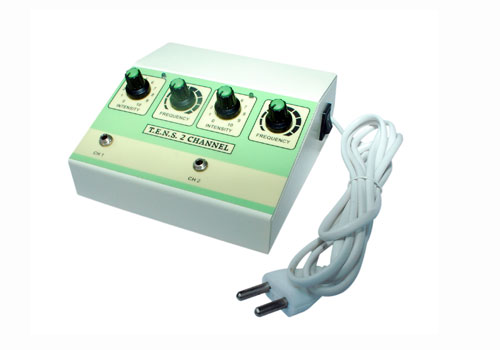

| Dual Channel Tens Portable Model-PCD-115 |
|
|
| |
|
| |
We are manufacturer of advance T.E.N.S Machines, which are offered in pocket, light weight and carry model. The solid state circuits provided in these machines are very effective and the unit is best quality plastic body & fully safe to use. Besides, these advanced functions, these machines are provided with standard accessories and can be bought at market leading prices from us. |
|
| |
| Features: |
|
Frequency - Variable selection 2Hz to 120Hz. |
|
Pulse width - selection (fixed) |
|
Intensity- Independent intensity control 0 - 80A |
|
Operating voltage -220 volt Ac / 50Hz. |
|
Output - Two channel independent |
|
On/Off switch - Left side |
|
Equipment weight-Light weight. |
|
Indicator - two independent indicators with channel. |
| Standard Accessories:: |
|
Output lead – 2 |
|
Output pad- 4 |
|
Jelly bottle- 1 |
|
Straps – 1 Large 32 inches , 2 small 22 inches |
|
Carry bag -1 |
|
| |
|
|
| |

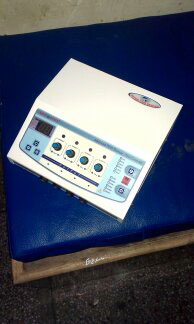

| FFDyno Four Channel Tens Portable Model-PCD-116 |
|
|
| |
We would like to introduce our clients with an exclusive assortment of Physiotherapy Tens Major Equipment, which is a professional model of pain reliever. Regular usage of this equipment block s the nerves from sensing pain stimuli. Moreover, this product is efficiently reduces muscle pain, post traumatic stiffness and periarthritis of shoulder. The specifications of this equipment are mentioned below
The unit is a computerized multi programmer transcuteneous electric nerve stimulator with LCD display Six and Two channel output. |
|
| |
| Features: |
| Input Voltage |
220v Ac/ 50 Hz |
| Timer |
LCD Display 0-99 min. |
| Therapy Modes |
- Eight Pre-programming
Burst - 100Hz, 150 Hz .
Sweep frequency (2-80 & 20-100 Hz)
Constraint 10Hz & 100 Hz
Mixed 2-20 Hz & 20-100 Hz |
| Standard Accessories:: |
|
Four Set Patient Wire. |
|
Three set Fixation straps |
|
One jell bottle |
|
One power cable inches |
|
One operating manual |
|
| |
|
|
| |
| Interferential Therapy Unit Feather touch manual, 16 Programs & 29 Programs Model-PCD-120 |
|
|
| |
We also supply Interferential Therapy Equipment, advance equipment that is based on micro controller circuit. This smart solution is used to provide relief from pain, reduce swelling and to also to promote healing in the infected organ. It is widely demanded for its features like user-friendly design and reliable services.
Interferential Therapy Unit(Feather touch manual , 16 Programs & 29 Programs) |
|
| |
| Features: |
|
User friendly can be easily operated |
|
Totally feature Feather Touch |
|
FND Display (Timer, intensity, Beat frequency & Balance) |
|
Simplified servicing mechanism card system |
|
Totally computerized unit |
|
Upgrade able 16 & 29 different programs |
| Technical Specification: |
| Model |
IFT Feather touch button manual |
| Input Supply |
220V Ac/50 Hz |
| Power Fuse |
1 Amp |
| Weight |
3.5 Kg approx |
| Power Consumption |
LCD Display 0-99 min. |
|
| |
|
|
| |

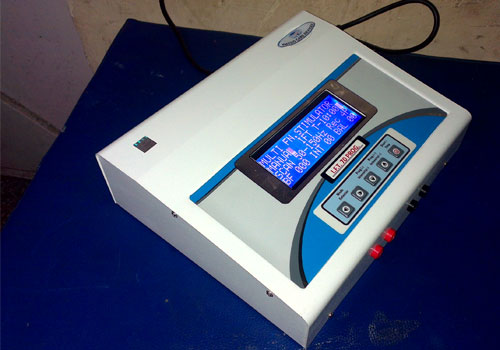

| Genius Interferential Therapy lcd based with protocols pre program) Model-PCD-123 |
|
|
| |
Interferential Therapy is an analogue interferential stimulation device which is used for symptomatic relief and management of post surgical and post traumatic acute and chronic pain.
This type of stimulation is characterized by the crossing of two electrical medium, independent frequencies that work together to effectively stimulate large impulse fibers. These frequencies interface with the transmission of pain messages at the spinal cord level. Because of the frequency, the interferential wave meets low impedance when crossing the skin to enter the underlying tissue. This deep tissue penetration can be adjusted to stimulate parasympathetic nerve fibers for increased blood flow. Interferential Stimulation differs from TENS because it allows a deeper penetration of the tissue with more comfort (Compliance) and increased circulation.
Common Uses
Pre and Port Orthopedic Surgery, Joint Injury Syndrome, Cumulative Trauma Disorders, Increasing Circulation & Pain Control of Various Origins.
ys.
Interferential Therapy model Computerized Interferential therapy is most advanced version; based on solid-state circuitry, extremely light weight, compact design and portable and user friendly systems.
nence. |
|
| |
| Specification: |
| DIMENSION (L*H*D) |
378mm, 100mm, 280mm |
| WEIGHT |
3.5 Kg. Approx. |
| OPERATING VOLTAGE |
140 ~ 270V AC, 50Hz |
| ABSORPTION |
46-Watts Max |
| FUSES |
1 Amp |
| ROOM TEMPERATURE |
10° to 40° C |
| MOISTURE |
10% to 80% |
| MAX OUPUT CURRENT |
100 mA Digital Display for CH-1 |
| MAX OUPUT CURRENT |
100 mA Digital Display for CH-2 |
| MAX OUPUT VOLTAGE 1 |
00V (Peak to Peak) |
| MEDIUM FREQUENCY |
2 KHz & 4 KHz |
| BASE AMF |
1-150 Hz with Digital Display |
| Spectrum |
0-150 Hz with Digital Display |
| THERAPY MODE |
4P, 4PV, 2P |
| VECTOR MODE |
2PL, 4PL, 4PT, 4PNT |
| TENS PLANE / BURST |
2~60 Kg (Each 0.5 Kg Steps) |
| DIGITAL TIMER |
1 ~60 Minutes Adjustable |
|
| |
|
|
| |
|
| |
| Muscle stimulator dignostic model –pcd-114 A |
|
|
| |
Muscle stimulators PHYSIOSTIM-D are extremely light weight, compact size, portable and easy to carry. |
|
| |
| Specification: |
| Therapy mode |
G, IG, F and SF |
| Pulse duration |
0.01, 0.03, 0.1, 0.3, 1, 3, 10, 30, 100, 300 and 1000 m sec. |
| Pulse Rest time |
1-6 sec |
| Visual Indicator |
G, IG, F and SF |
| Faradic Frequency |
50H2/0.7 m Sec |
| Surge Duration |
1-6 Sec |
| Surge Rest Time |
1-6 Sec |
| Note |
3 digit digital displays meter available for diagnostic muscle stimulator – PHYSIOSTIM-D |
|
| |
|
|
| |
| PCD-126B |
|
 |
|
|
|
| |
|
|
| |
|
|
